Fire Extinguishers

Overview

Part # W13315
ABC Dry Chemical is a multipurpose extinguishing agent that is suitable for use on Class A, Class B and Class C fires.

Technical Specifications

• Part Number11315 (Alum.)
• Alternate Part Number11390 (Alum.)
• Brass ValveN/A
• Agent Capacity2.5 lb (1.13 kg)
• UL/ULC Rating1-A:10-B:C
• Temperature Range–65° to 120°F (–54° to 49°C)
• Discharge Time9 seconds
• Discharge Range9–15 ft (2.7–4.6 m)
• Operating Pressure100 psi (689 kPa)
• Mounting TypeVehicle
• USCG ApprovalType B:C Size I
• Ship Weight5.5 lb (2.5 kg)
• Unit Dimensions
  Height: 14.75 in (37.5 cm)
  Width: 4.875 in (12.4 cm)
  Diameter: 3.375 in (8.6 cm)

Typical Uses

For public areas such as offices, classrooms, churches, parking garages, and hotel/motel assembly halls and guest areas. For businesses such as retail stores, light manufacturing facilities, research facilities, auto dealerships, vehicle/aircraft/marine service centers, and manufacturing processes such as painting, dipping, and coating on fires involving cooking oil and grease.
UL Listed, USCG Approved, DOT Compliant. Not recommended for use on sensitive electronic equipment or aircraft structure.
Tags are not included. Inspection not included.

Additional Information

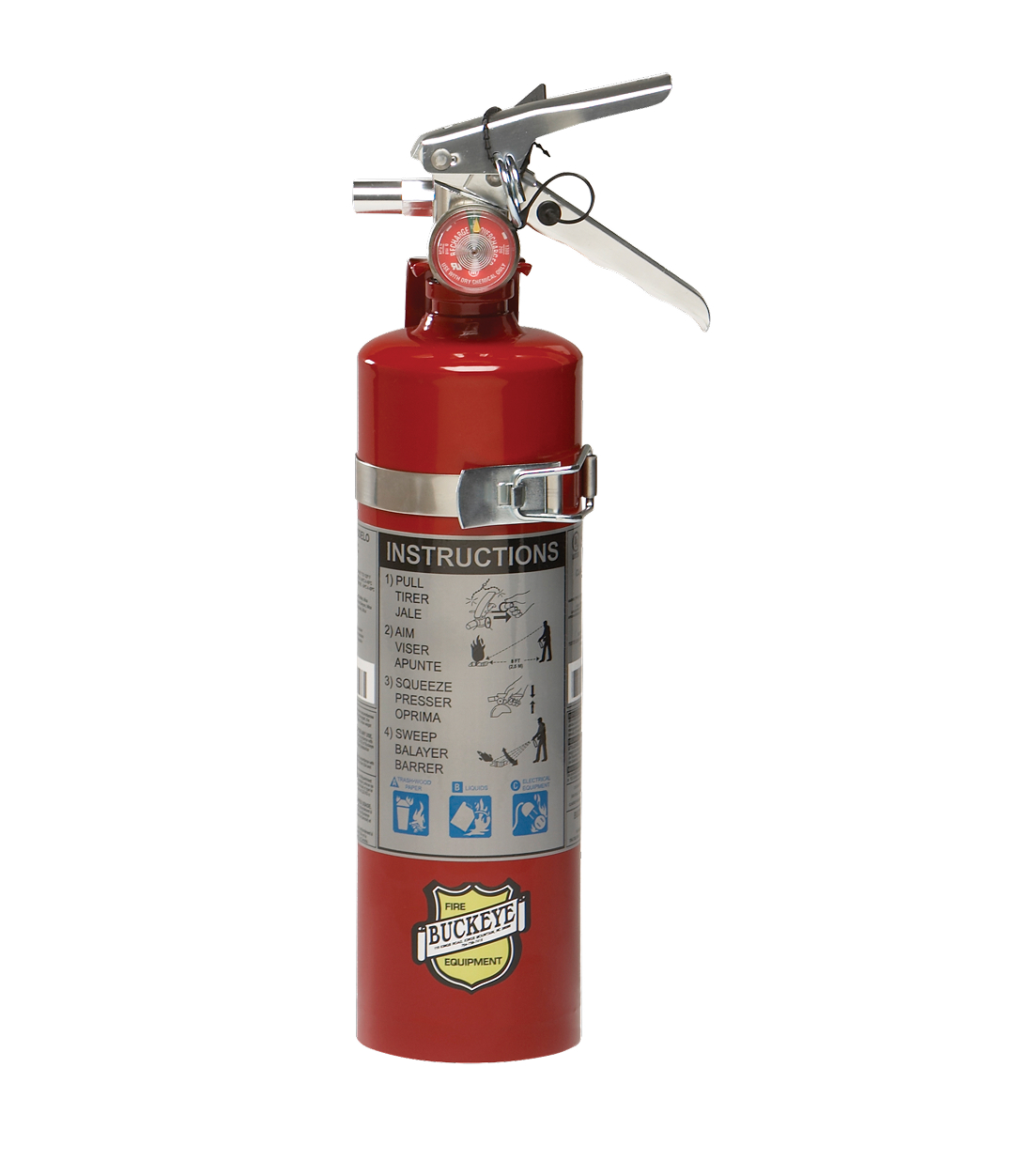

ABC 2.5 lb Rechargeable 1-A:10-B:C w/Vehicle Bracket
