Fire Extinguishers

Overview

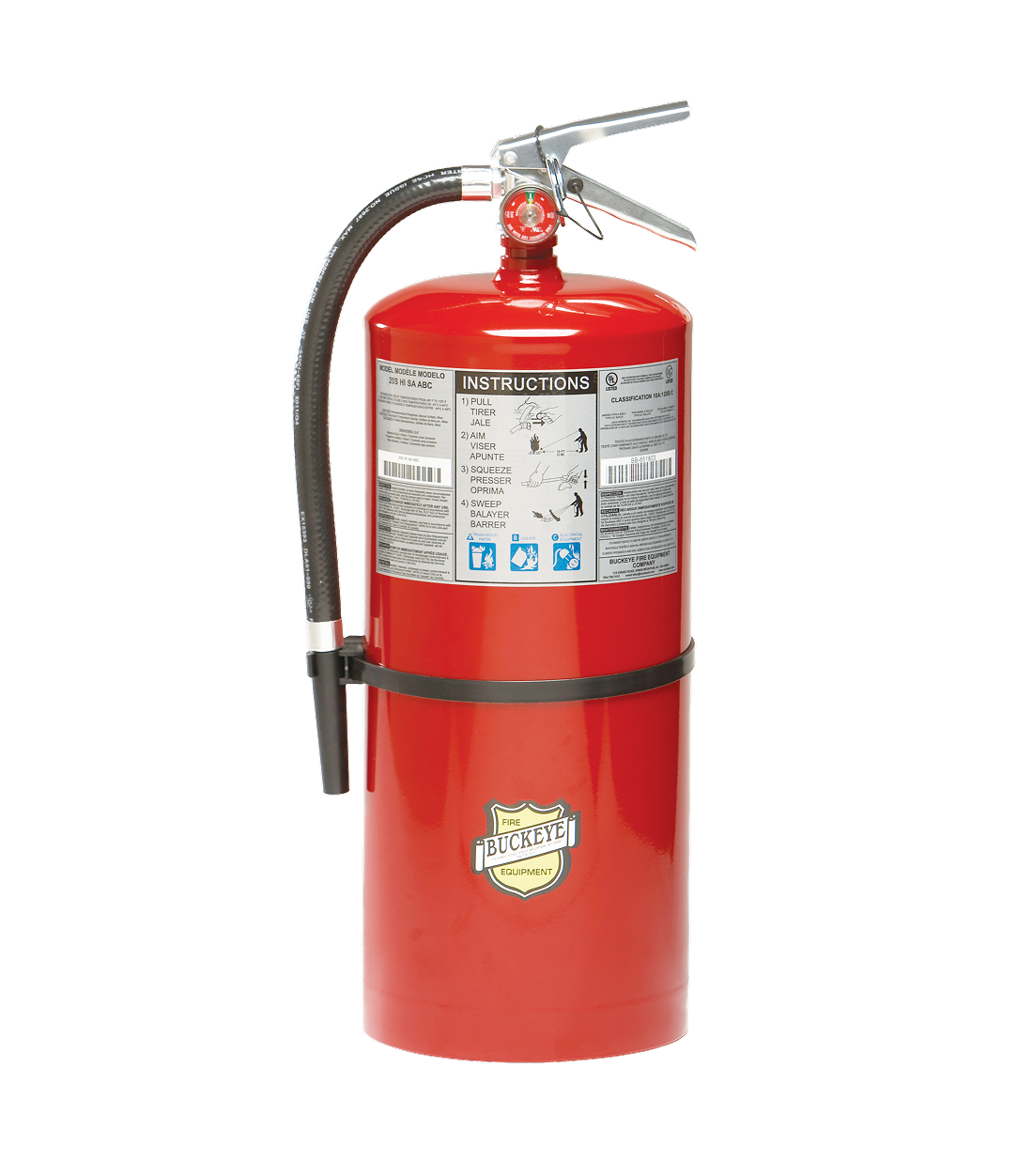

Part # W12120
ABC Dry Chemical is a multipurpose extinguishing agent that is suitable for use on Class A, Class B and Class C fires.

Technical Specifications

• Part Number12120 (Alum.), 12121 (Brass)
• Alternate Part Numbers12195 (Alum.), 12196 (Brass)
• Agent Capacity20 lb (9.07 kg)
• UL/ULC Rating10-A:120-B:C
• Temperature Range–65° to 120°F (–54° to 49°C)
• Discharge Time27 seconds
• Discharge Range15–21 ft (4.6–6.4 m)
• Operating Pressure195 psi (1344 kPa)
• Mounting TypeWall
• USCG ApprovalType A Size II, Type B:C Size III
• Ship Weight33.5 lb (15.2 kg)
• Unit Dimensions
  Height: 21.25 in (53.8 cm)
  Width: 8.75 in (22.2 cm)
  Diameter: 7.5 in (19.1 cm)

Typical Uses

For public areas such as offices, classrooms, churches, parking garages, and hotel/motel assembly halls and guest areas. For businesses such as retail stores, light manufacturing facilities, research facilities, auto dealerships, vehicle/aircraft/marine service centers, and manufacturing processes such as painting, dipping, and coating on fires involving cooking oil and grease.
UL Listed, USCG Approved, DOT Compliant. Not recommended for use on sensitive electronic equipment or aircraft structure.
Tags are not included. Inspection not included.

Additional Information

ABC 20 lb Rechargeable 10-A:120-B:C w/Wall Hanger
