Fire Extinguishers

Overview

Part # W11340
ABC Dry Chemical is a multipurpose extinguishing agent that is suitable for use on Class A, Class B and Class C fires.

Technical Specifications

• Part Number11340 (Alum.), 11341 (Brass)
• Alternate Part Numbers11390 (Alum.), 11349 (Brass)
• Agent Capacity10 lb (4.54 kg)
• UL/ULC Rating4-A:80-B:C
• Temperature Range–65° to 120°F (–54° to 49°C)
• Discharge Time22 seconds
• Discharge Range15–21 ft (4.6–6.4 m)
• Operating Pressure195 psi (1344 kPa)
• Mounting TypeWall
• USCG ApprovalType A Size II, Type B:C Size II
• Ship Weight18.25 lb (8.3 kg)
• Unit Dimensions
  Height: 21 in (53.3 cm)
  Width: 7.75 in (19.7 cm)
  Diameter: 5.125 in (13 cm)

Typical Uses

For public areas such as offices, classrooms, churches, parking garages, and hotel/motel assembly halls and guest areas. For businesses such as retail stores, light manufacturing facilities, research facilities, auto dealerships, vehicle/aircraft/marine service centers, and manufacturing processes such as painting, dipping, and coating on fires involving cooking oil and grease.
UL Listed, USCG Approved, DOT Compliant. Not recommended for use on sensitive electronic equipment or aircraft structure.
Tags are not included. Inspection not included.

Additional Information

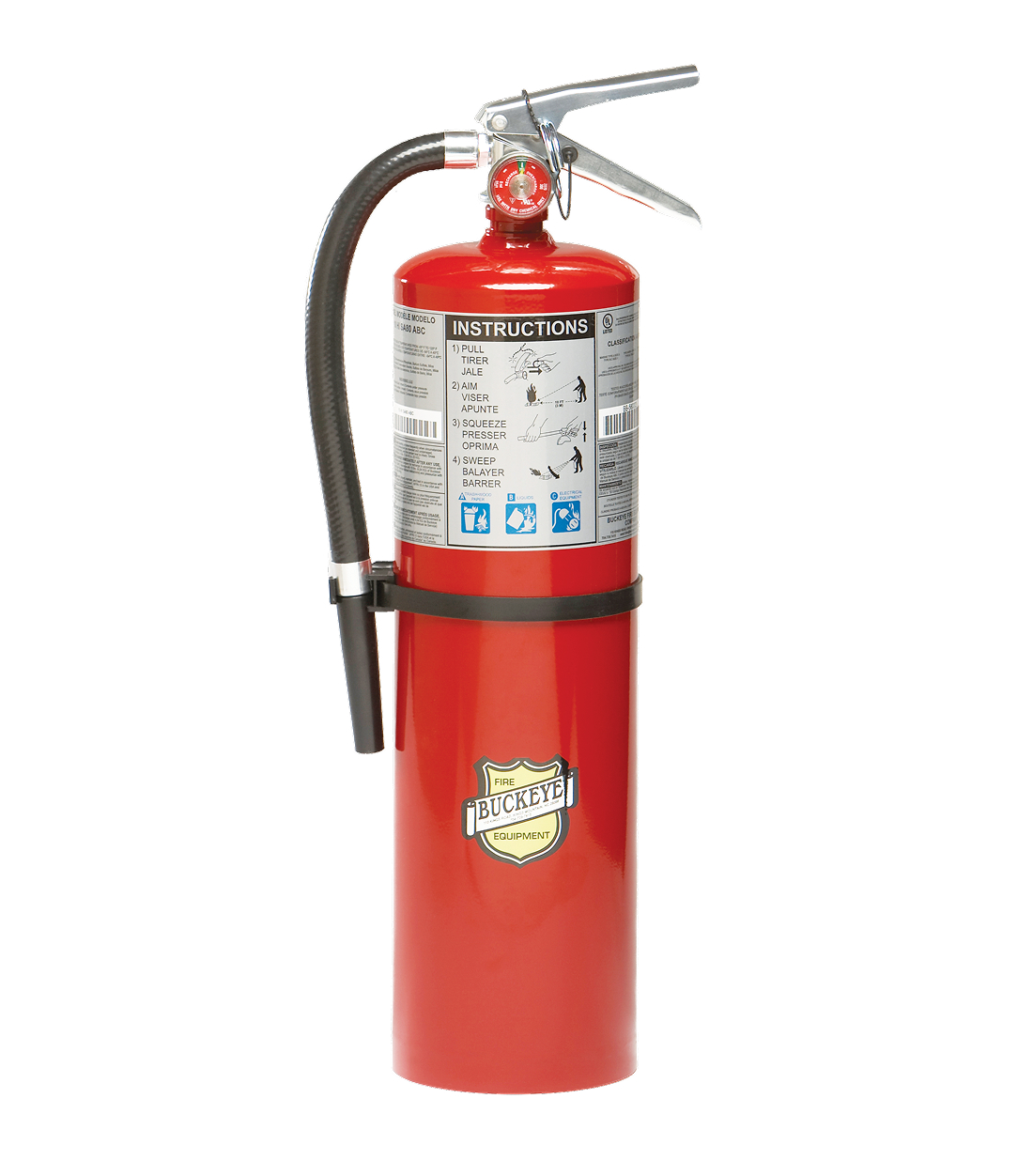

ABC Tall Rechargeable Fire Extinguisher 4-A:80-B:C w/Wall Hook
